Description
Product Description

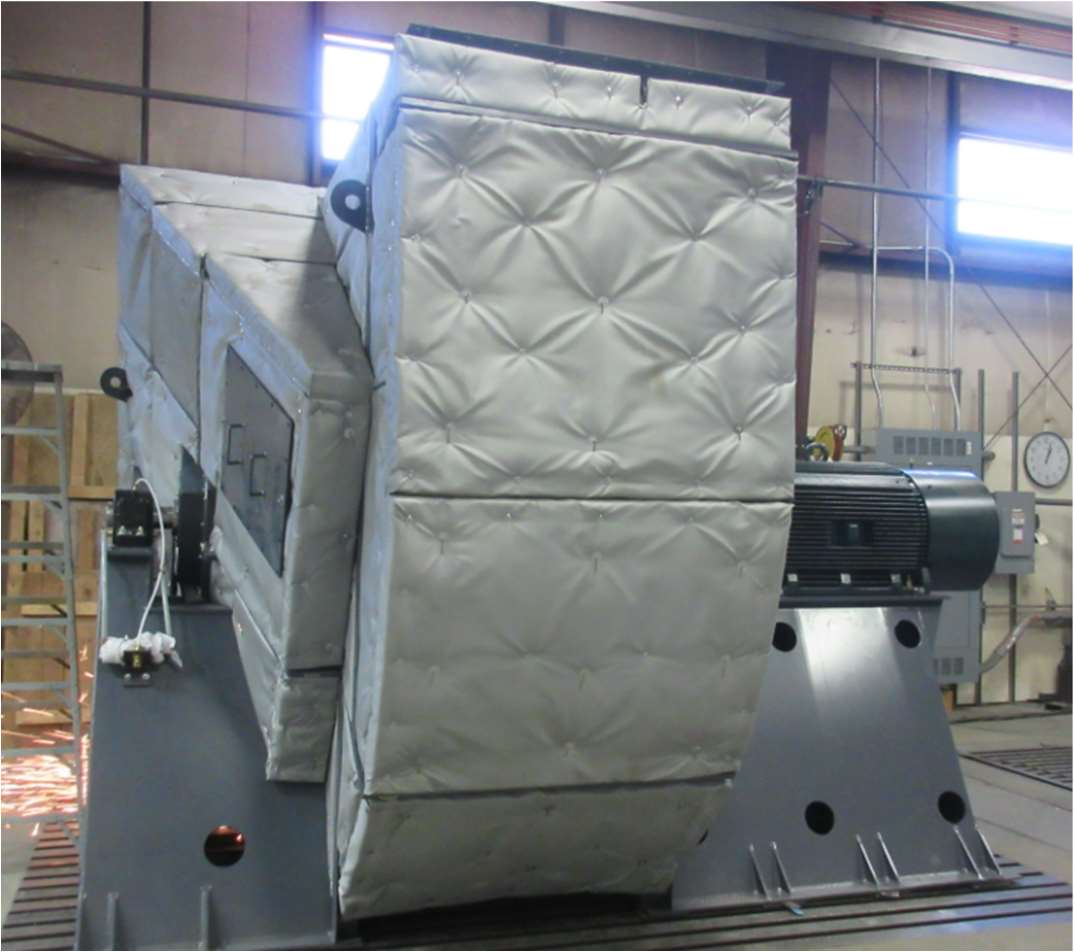

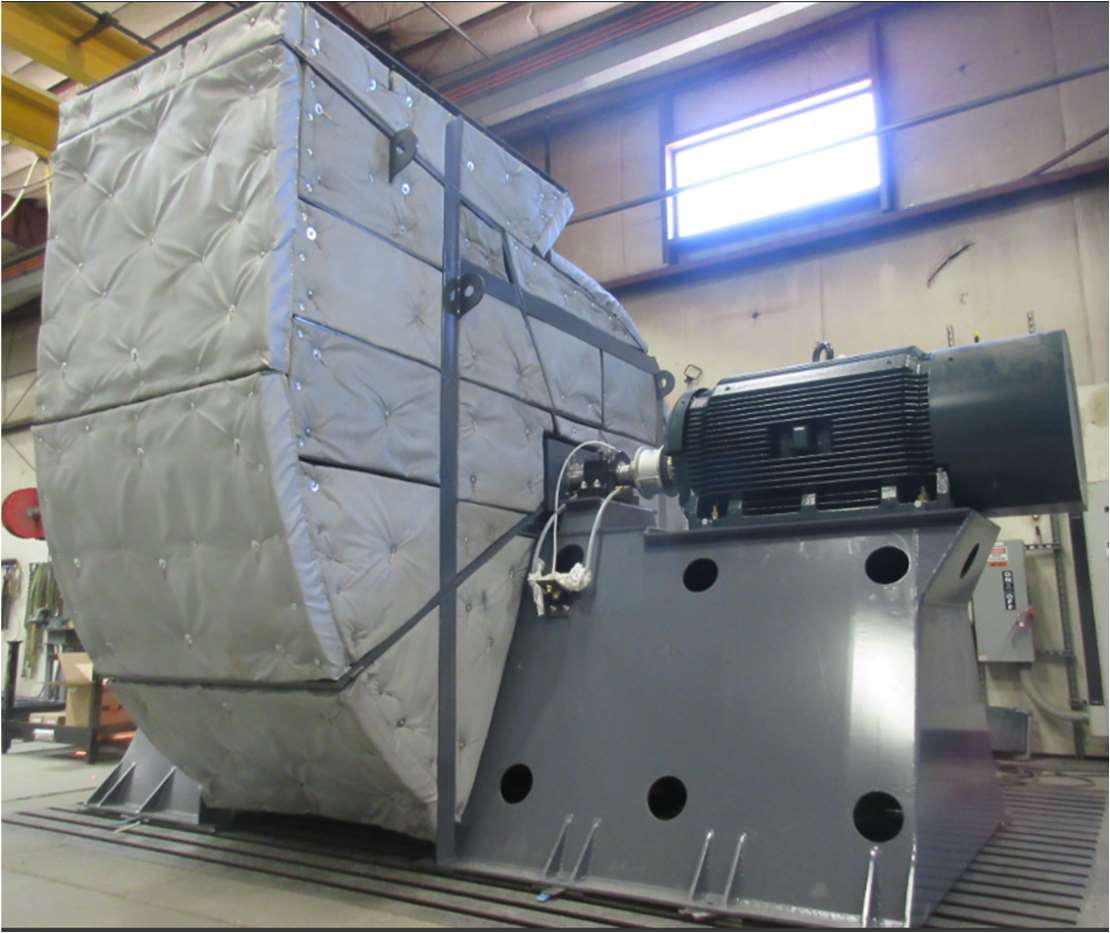

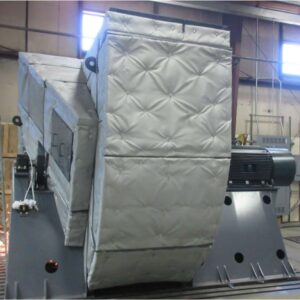

RTHS 625, Class 5, 360º discharge, CW Rotation, Arrangement 7, 750ºF max design temperature, 1200 RPM max
design speed
Performance
123,000 Acfm @ 9” WGSP @ .033 Lb/ft^3
Features
300 HP motor, Independent bearing pedestal on side opposite drive end, Integral inlet box w/ CW60 º inlet position
to keep non-drive-side bearing out of the airstream, Flexible coupling drive, Vibration and temperature sensors
installed on roller bearings, 4” removable thermal insulation, Chromium Carbide overlay plate on blades (1/3 of
blade tip width) and interior housing scroll and cheek liner
