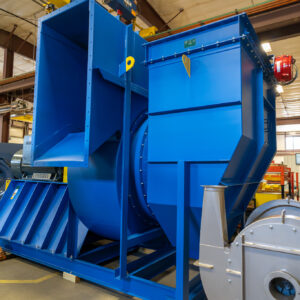

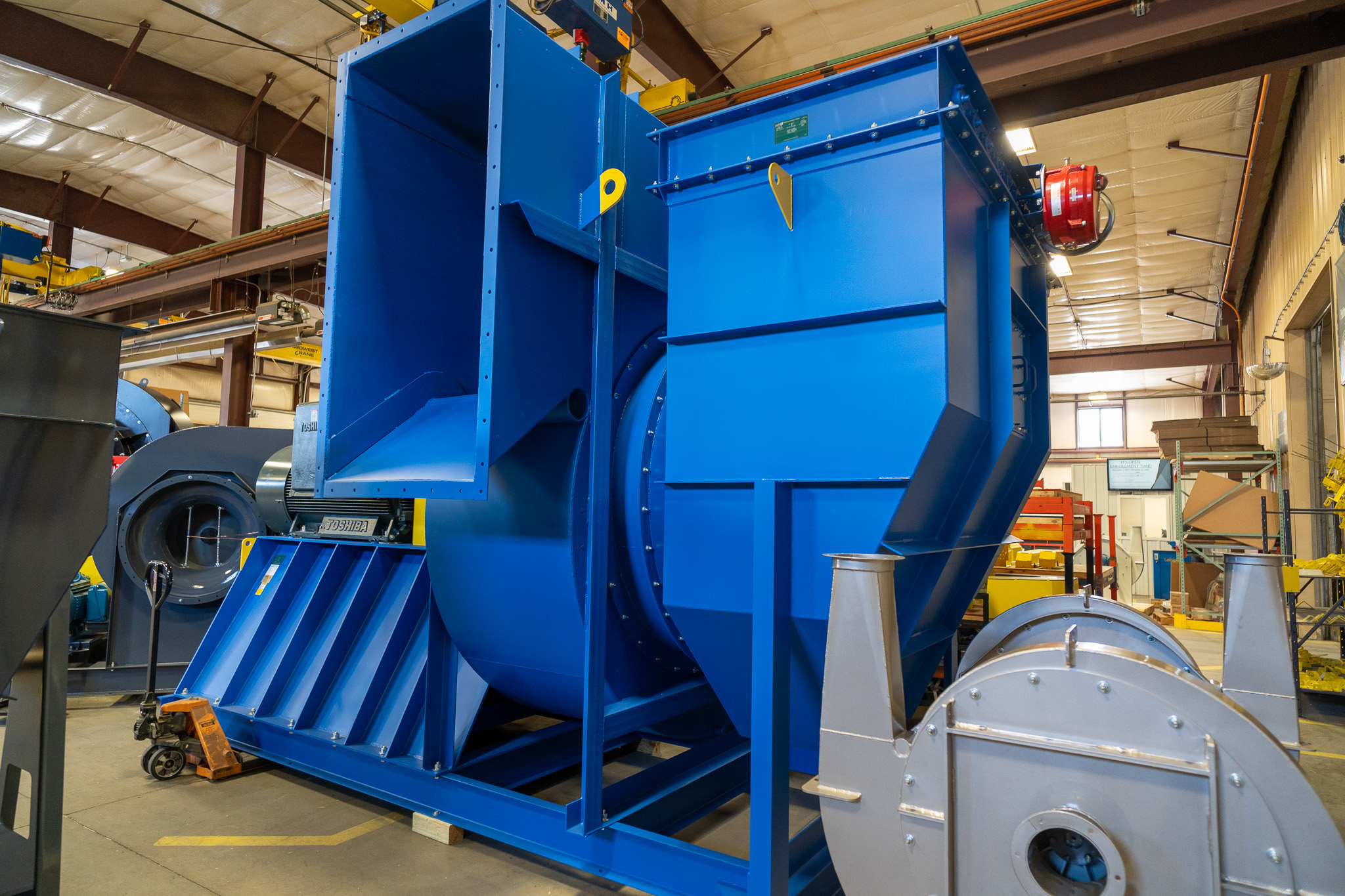

Description

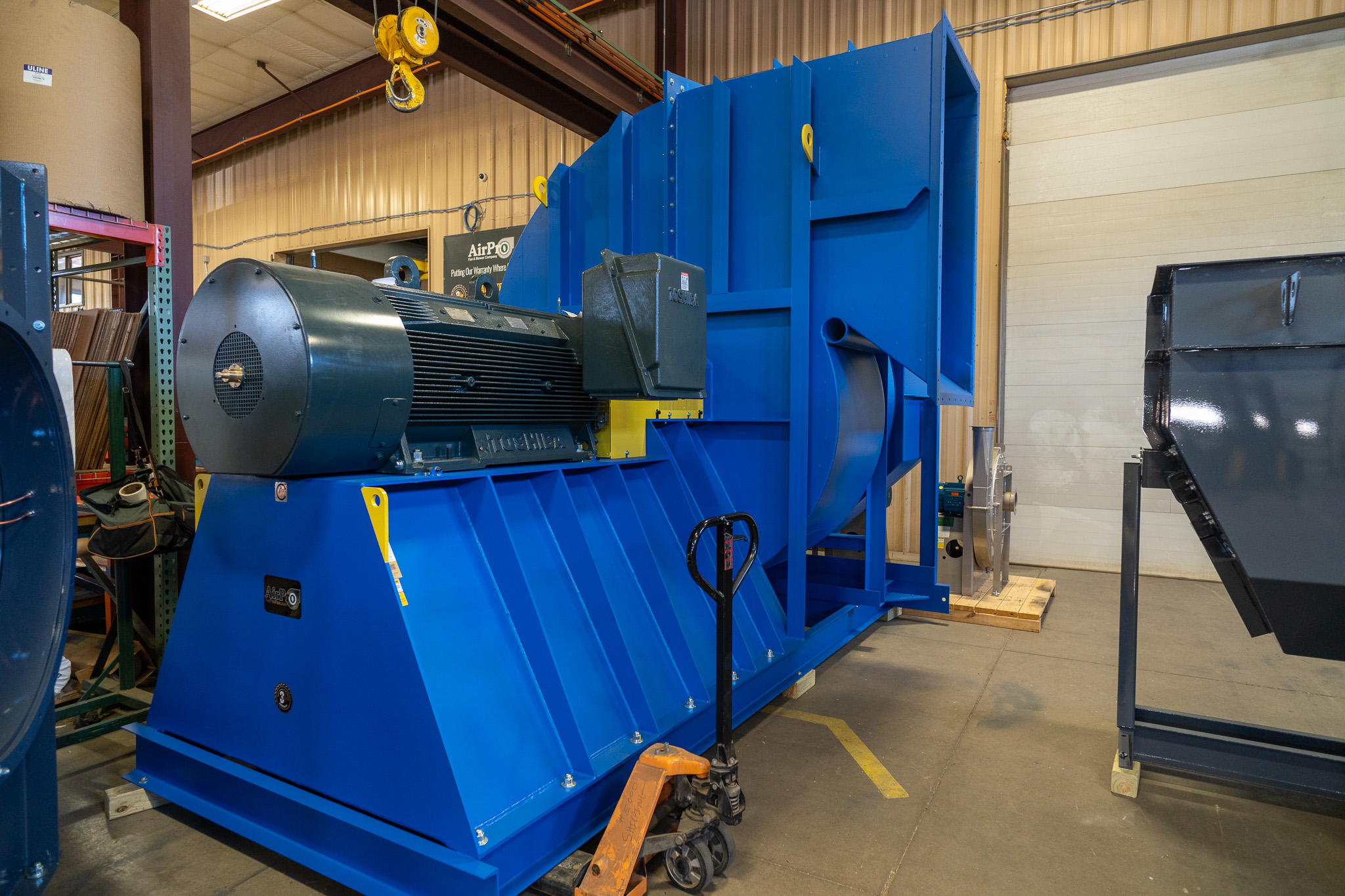

500 HP Customer-Supplied Motor – Direct drive configuration designed for TEFC motor (1800 RPM, 460V/60Hz/3-phase)
Arrangement 8 – Direct drive configuration for efficient power transmission
High Temperature Design – Engineered for continuous operation up to 350°F with specialized materials and clearances
AR400 Housing Scroll & Cheek Liners – Abrasion-resistant liners protect fan housing in high-wear material handling applications
AR400 Wheel Blade Liners – Abrasion-resistant blade protection extends wheel life in abrasive environments
High Strength Carbon Steel Wheel – Wheel material specifically selected for demanding material handling service
Variable Inlet Vanes with Electric Actuator – Electric actuator with positioner provides precise automated flow control
Flexible Coupling with OSHA Guards – Reduces vibration transmission with proper guarding for safe operation
Unitary Base with Heavy Duty Pedestal Design – Robust integrated mounting provides stable installation for high-horsepower operation
Vibration Transmitters – One transmitter per bearing (2 total) enables continuous vibration monitoring
RTD Temperature Sensors with Head Mounted Transmitters – One RTD per bearing (2 total) provides real-time bearing temperature monitoring
Carbon Steel Inlet Box with Flex Connector – Smooth airflow transition with vibration isolation
Outlet Flex Connector – Vibration isolation at discharge connection reduces system stress
1850 RPM Max Design Speed L-10 Bearings – Extended bearing life rated for high-speed operation
Class X Construction – Heavy-duty construction for extreme service conditions
This fan delivers dependable performance in demanding material handling applications requiring abrasion resistance, high-temperature capability, and comprehensive monitoring.
