Description

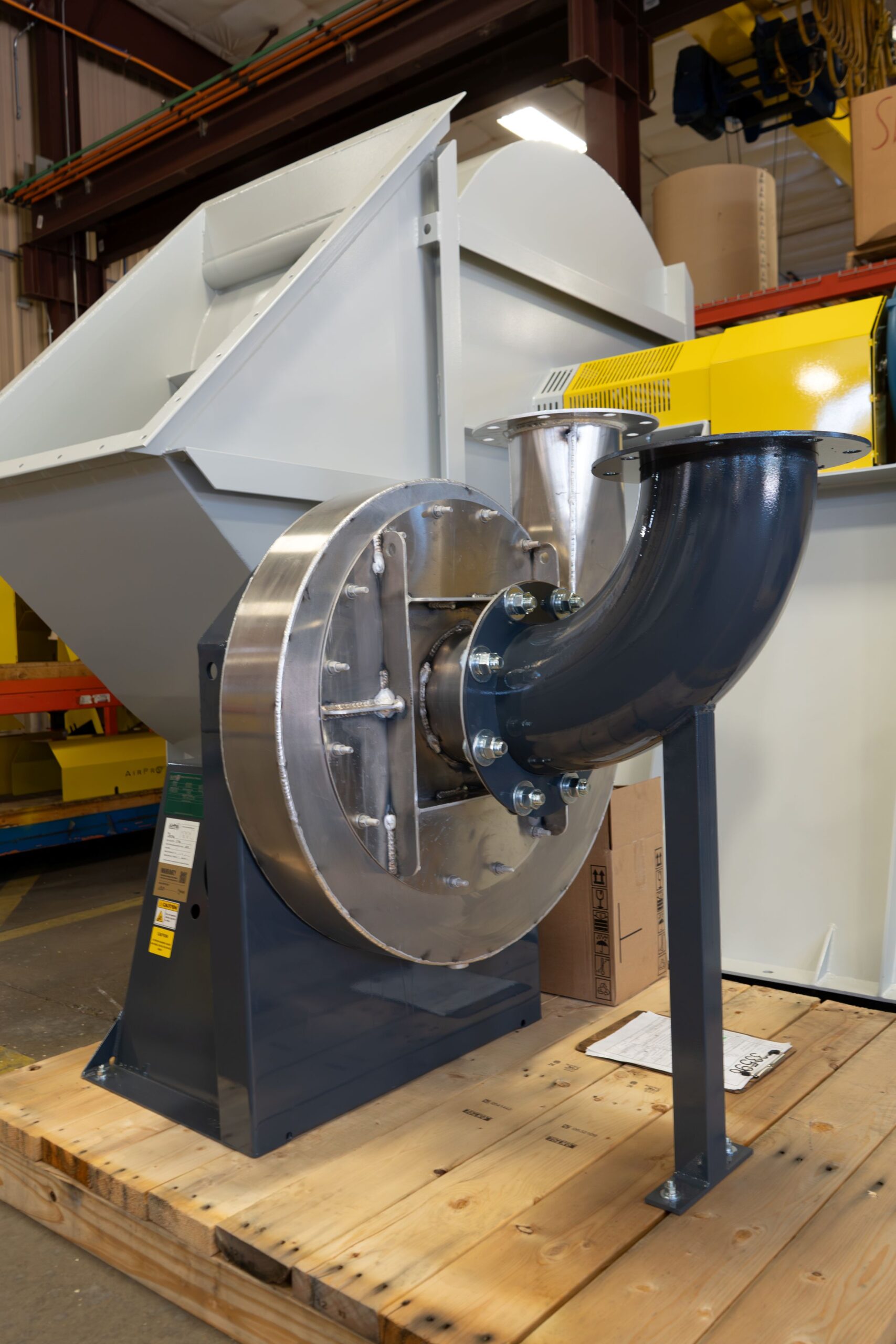

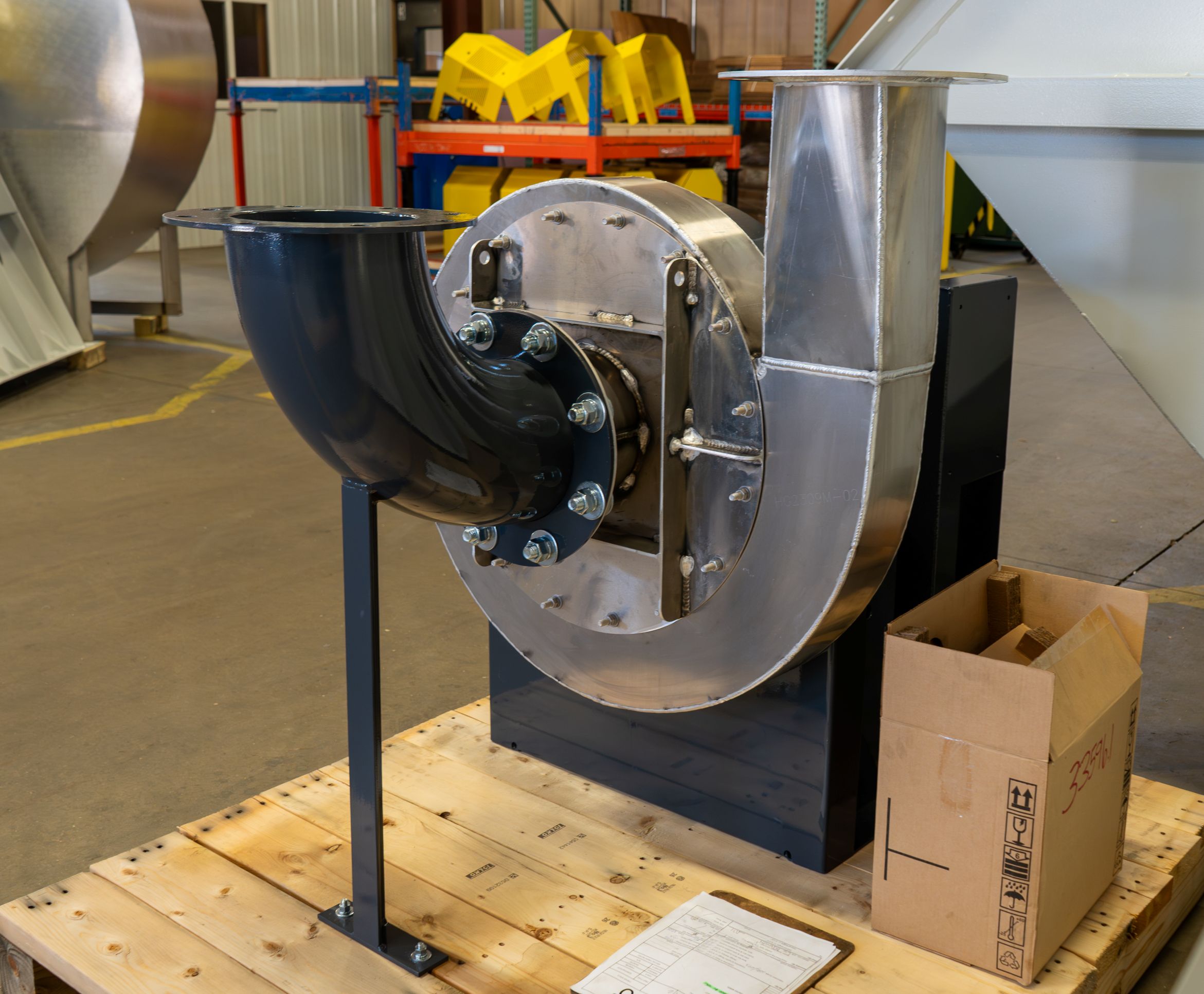

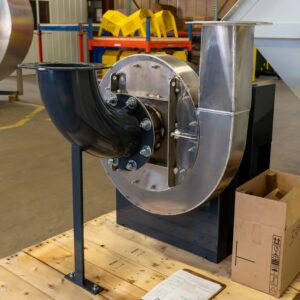

This P08B 190 pressure blower is moving sticky air in the asphalt industry. The challenge: Handling sticky, oily asphalt fumes that would typically build up on fan components and reduce performance over time. Our solution: This 19″ diameter, 3HP system features a Teflon-coated wheel that dramatically reduces surface friction, preventing sticky material buildup while maintaining consistent airflow. The aluminum housing provides spark-resistant construction essential for volatile fume applications, while the integrated VFD enables precise speed control to match varying process demands. Delivering 1,000 ACFM at 5.0″ w.g. with an inlet vane elbow for smooth airflow transition, this Class 50 construction handles up to 200°F operating temperatures. The combination of specialized coatings, spark-resistant materials, and variable speed control creates a reliable solution for one of industrial ventilation’s toughest applications.
Base Fan: P08B 190
✔ Airstream Material: Aluminum
✔ Wheel Material: Carbon Steel
✔ Motor (Premium Eff, 3hp, 1800rpm, 460V/60Hz/3ph, TEFC,
NEMA 182T)
✔ Teflon Coated Wheel
✔ Bolted Access Door (unless housing is too narrow)
✔ Drain with Plug (except alloys)
✔ Flanged & Drilled Inlet & Outlet
✔ Industrial Enamel Coating
✔ Ceramic Felt Shaft Seal (except arr 4)
Arrangement: 4
Diameter: 19 in
Discharge: 360°
Rotation: CW
Class: 50
Max Design Temp: 200 °F
