Description

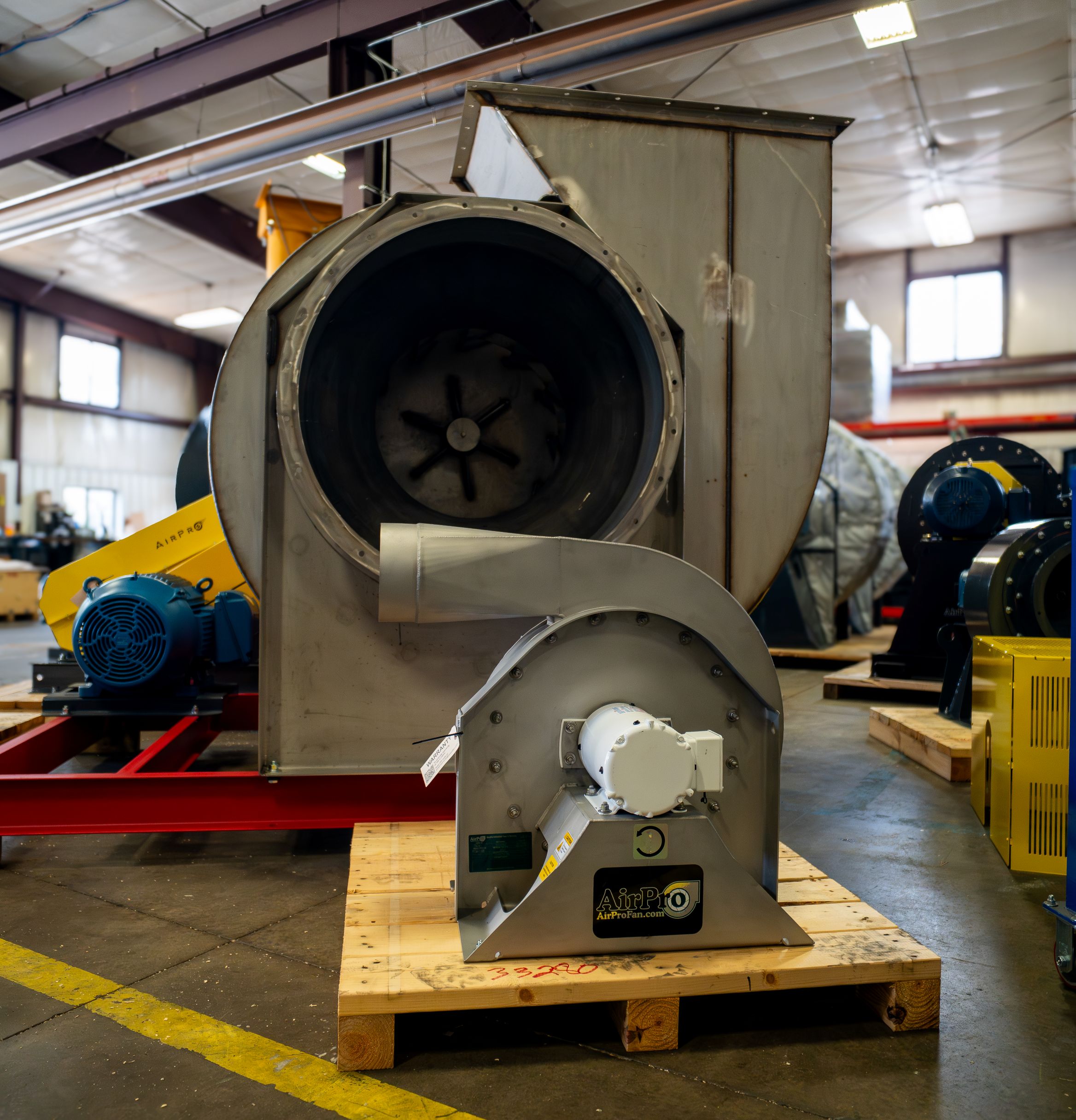

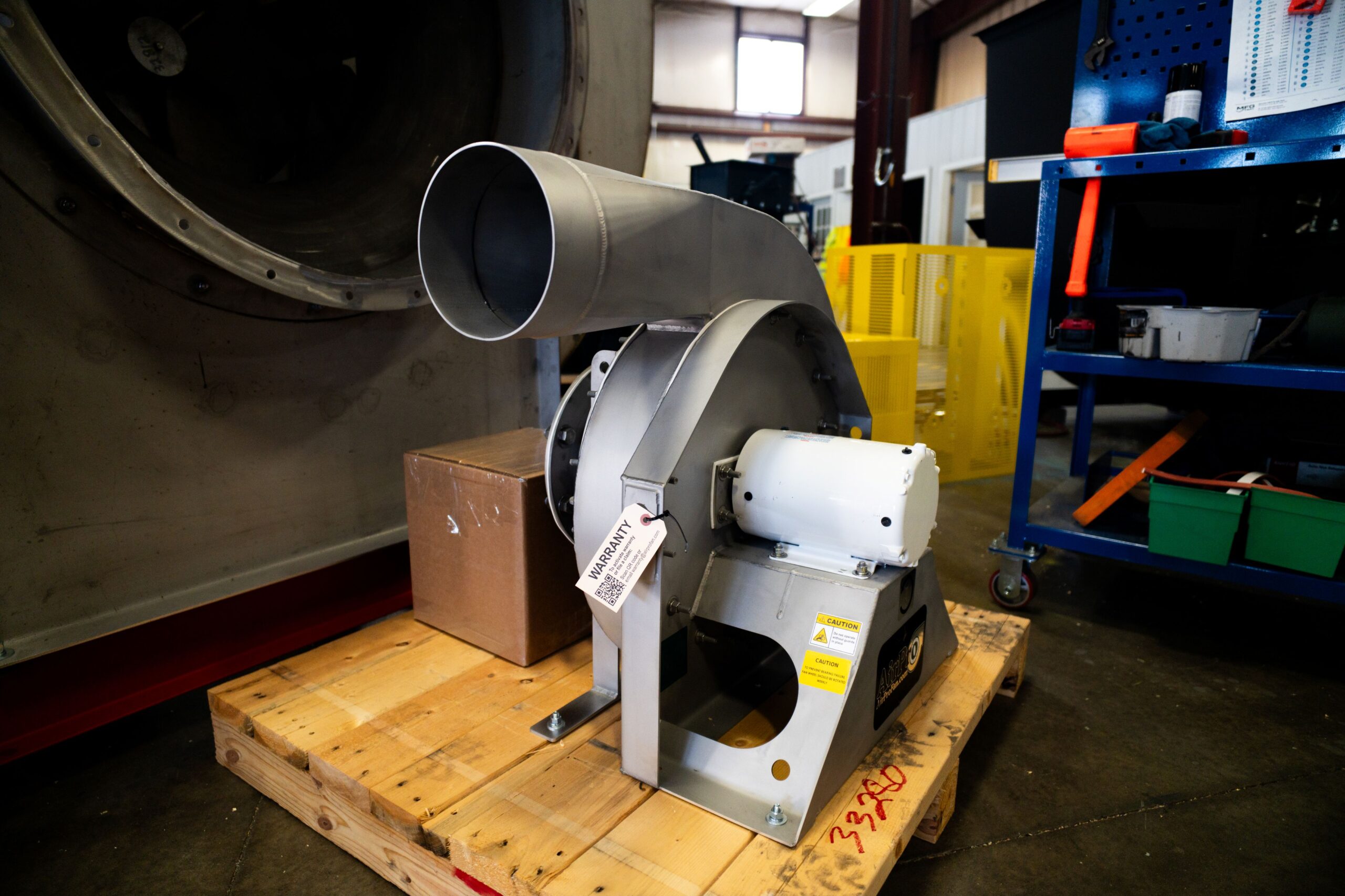

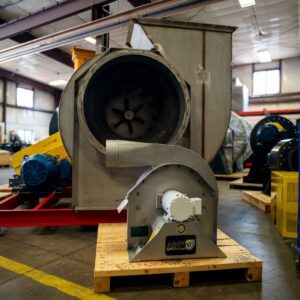

The AirPro P08B 155 is a compact, food-grade industrial fan designed for food manufacturing applications, specifically coating operations where cleanability and contamination prevention are paramount. Built entirely from 304 stainless steel construction, the fan features continuous welded airstream surfaces free of pits, cracks, and crevices to ensure compliance with hygienic standards.
With a 15.5-inch wheel, Arrangement 4 configuration, and downblast discharge orientation, it delivers 950 ACFM at 2.25 in. wg while operating at 1,785 RPM. Powered by a 1 HP washdown-duty, TENV motor with stainless shaft, it is fully equipped for sanitary processing environments. Rated for ambient conditions up to 150 °F, this fan offers dependable performance with an FEI of 1.08.
Key design features include:
-
304 stainless steel airstream and wheel for corrosion resistance and sanitation
-
Washdown-duty motor with white epoxy finish and stainless shaft for hygienic operation
-
FDA-approved white nitrile gasketing and food-grade outlet flex connector
-
Inlet screen, threaded stainless drain with plug, and slip outlet (8” OD) with connector
-
Stainless motor pedestal and leveling feet for robust installation
-
Continuous welding with caulked exterior skip welds for hygienic sealing
-
Compact, lightweight design (approx. 300 lb base fan)
The AirPro P08B 155 combines food-grade design, stainless steel durability, and washdown-ready construction, making it the ideal choice for coating operations and other sanitary food manufacturing processes.
Type: P08B
Size: 155
Width: 100 %
Speed: 1,785 RPM
Max Design Speed: 5,000 RPM
Volume: 950 Acfm
Fan Static Pressure: 2.25 in.wg.
Fan Inlet Air Density: 0.0750 lb/ft3
Inlet Pressure: 0.0 in.wg.
Outlet Velocity: 2,722 fpm
Operating Temp: 68 °F
Elevation: 0.0 ft ASL
Fan Shaft Power: 0.869 hp
Cold Start Power (68°F): 0.869 hp
Static Efficiency: 39 %
FEI: 1.08
Base Fan: P08B 155
✔ Airstream Material: 304 SS
✔ Wheel Material: 304 SS
✔ Threaded Drain W/Plug (Stainless Steel)
✔ Continuous Welding of Airstream Surfaces (Free of Pits, Cracks,
Crevices, & Spatter)
✔ Motor Pedestal Constructed of Stainless Steel
✔ Caulk Between Exterior Skip Welds
✔ Downblast Discharge Orientation
✔
Motor: Washdown Duty, 1HP, 1800RPM, 3-60-230/460V, TENV,
White Epoxy Paint, Stainless Steel Shaft (ABB/Baldor PN
CEWDM3546T)
✔ Slip Outlet, 8″ OD
✔ Inlet Screen. 304 Stainless Steel
✔ Leveling Feet
✔ Outlet Flex Connector, Food Grade Material, Slip Fit, 8″
Connection
✔ White Nitrile, FDA Gasketing
Arrangement: 4
Diameter: 15.5 in
Discharge: 360°
Rotation: CW
Class: 50
Max Design Temp: 150 °F
Max Temp Change Rate: 15 °F/min
Est. Ship Weight (per fan): 300 lb (base fan only)
Application: Food Manufacturing: Coating
