Description

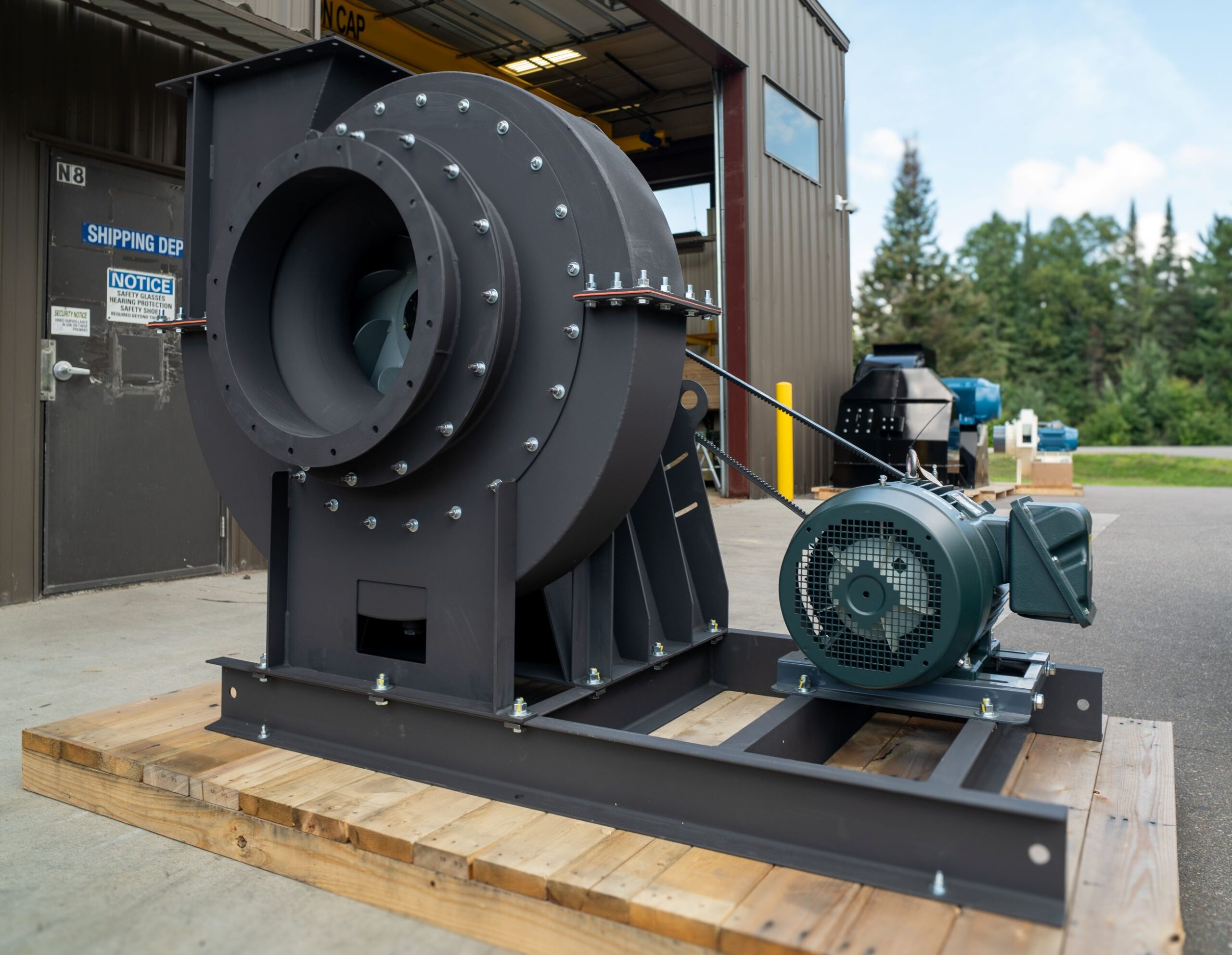

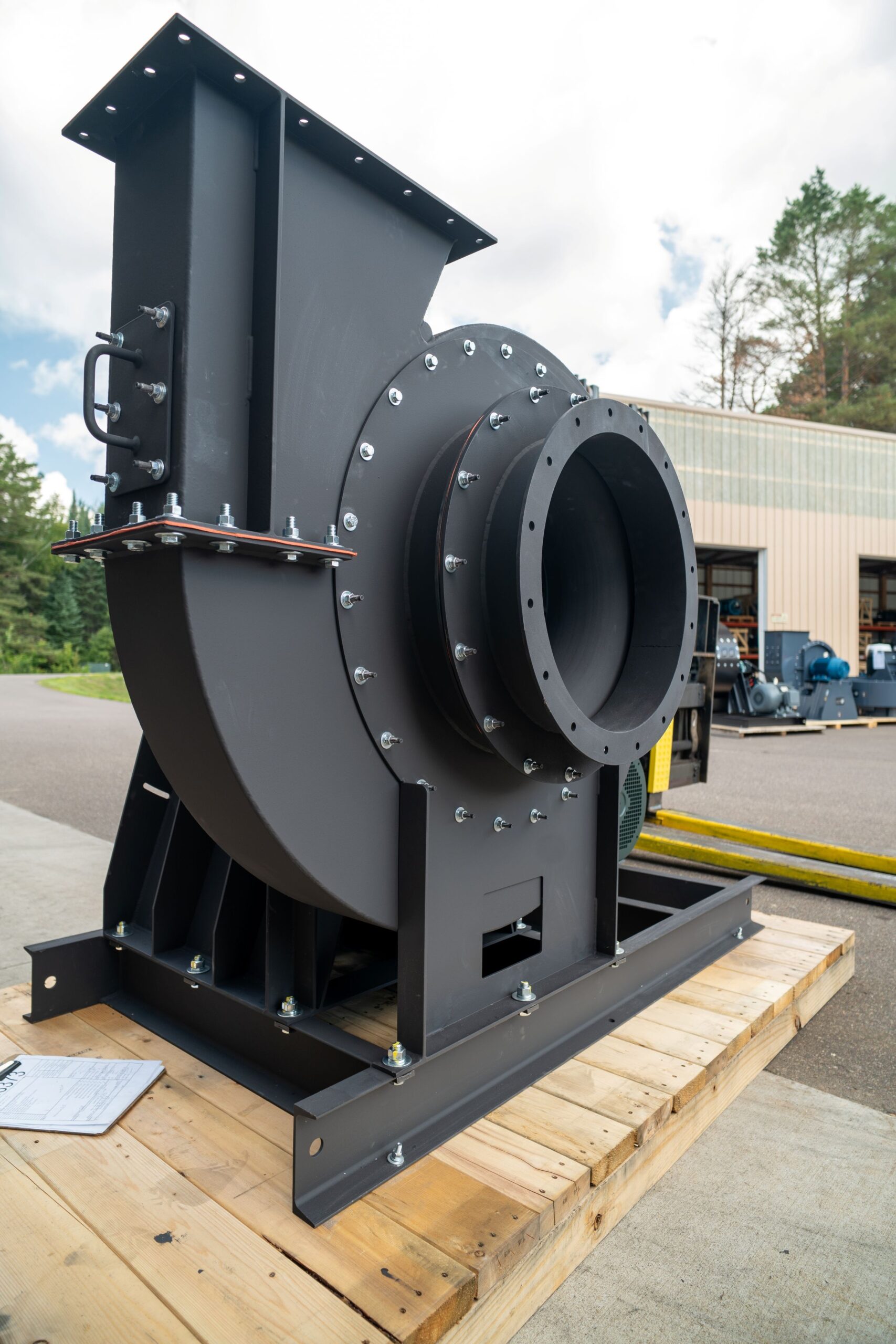

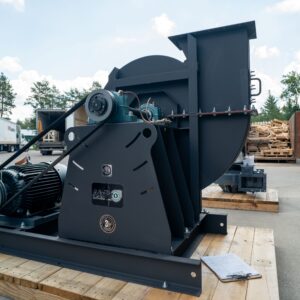

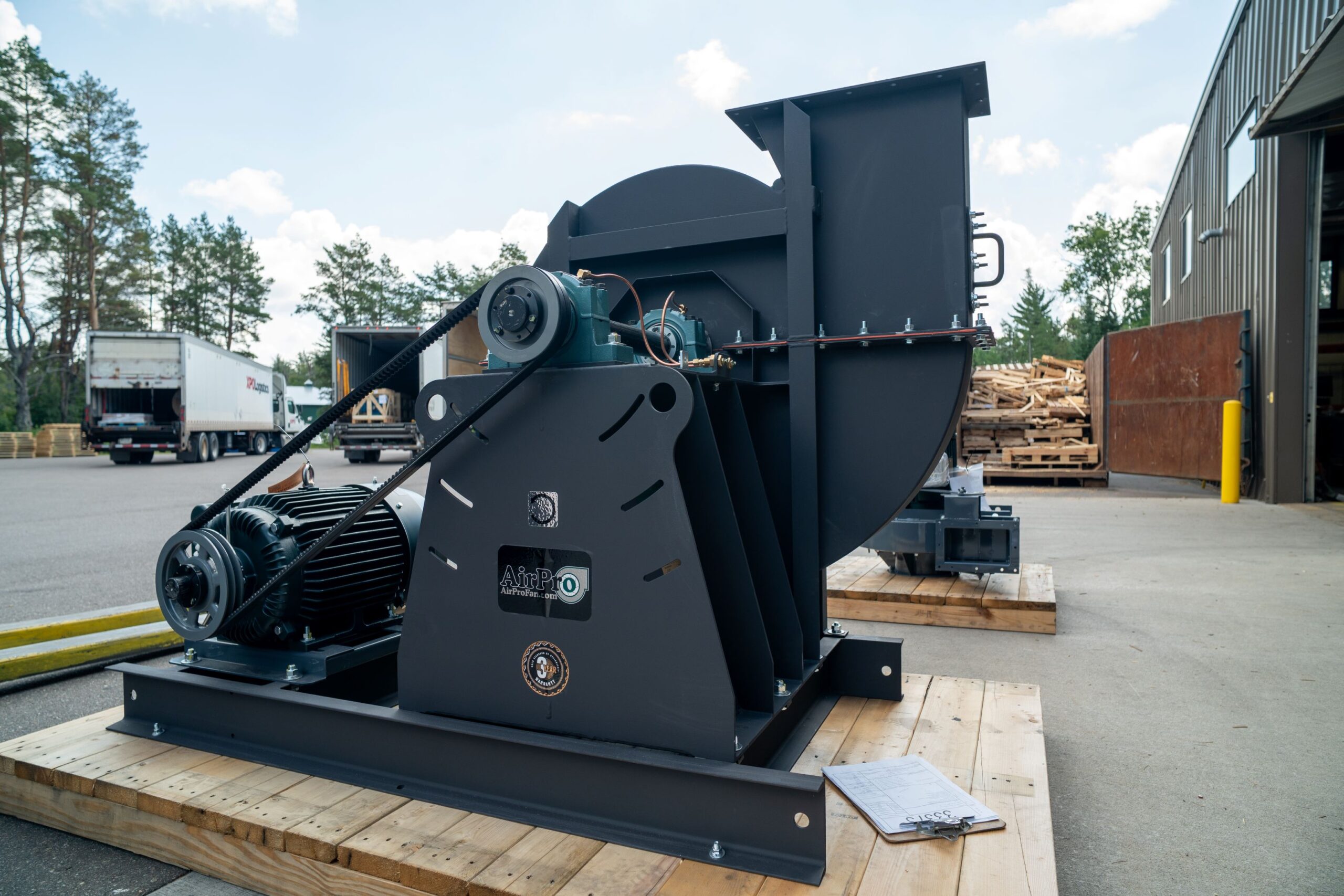

AirPro BILS 300 High-Temperature Industrial Fan
The AirPro BILS 300 is a compact, high-performance industrial fan built for reliable operation in elevated temperature applications. Constructed with carbon steel housing and a high-temp carbon steel wheel, this fan is designed for durability while maintaining efficient, continuous-duty performance.
With a 30-inch wheel diameter, the BILS 300 operates in Arrangement 1 with a 360° discharge and CCW rotation. It accommodates a 30 HP, 1800 RPM, TEFC motor (NEMA 286T) with v-belt drive and OSHA-compliant carbon steel safety guards. Built to handle process air applications up to 325 °F with a maximum temperature change rate of 15 °F/min, it’s purpose-designed for rugged industrial environments.
Key design features include:
-
BILS 300 base fan with split housing (horizontal design)
-
Extended lube lines and ceramic felt shaft seal for long service life
-
Factory-installed tachometer magnet strip for monitoring
-
Bolted access door and drain with plug for maintenance convenience
-
Flanged and drilled inlet & outlet connections
-
Industrial enamel coating for corrosion resistance
-
Unitary base for stable installation
-
Estimated ship weight: 1,000 lb (base fan only)
The AirPro BILS 300 is the ideal solution where moderate high temperatures, ease of maintenance, and reliable service must come together in a compact and efficient package.
Included Description
Base Fan: BILS 300
Airstream Material: Carbon Steel
Wheel Material: High Temp Carbon Steel
High Temperature Design
Motor (Ext. Shaft Grounding incl., 30hp, 1800rpm,
460V/60Hz/3ph, TEFC, NEMA 286T)
$311 V-Belt Drive
OSHA Guards (Carbon Steel)
Unitary Base
Split Housing (Horizontal)
Extended Lube Lines
Leave factory tachometer magnet strip installed
Max Outlet stack of 2000 lbs
Bolted Access Door (unless housing is too narrow)
Drain with Plug (except alloys)
Flanged & Drilled Inlet & Outlet
Industrial Enamel Coating
Ceramic Felt Shaft Seal (except arr 4)
Fan Data
Arrangement: 1
Diameter: 30 in
Discharge: 360°
Rotation: CCW
Class: 3
Max Design Temp: 325 °F
Max Temp Change Rate: 15 °F/min
Application
Dust Collection: Baghouse
