Description
Product Description

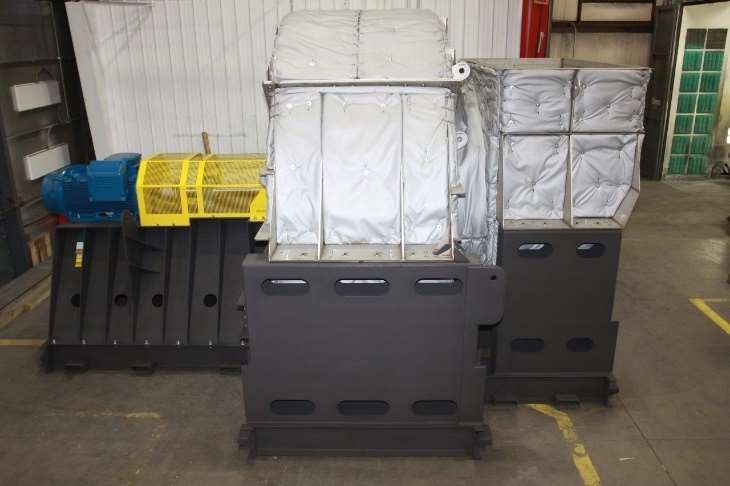

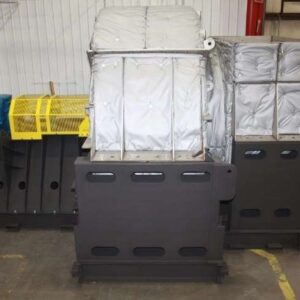

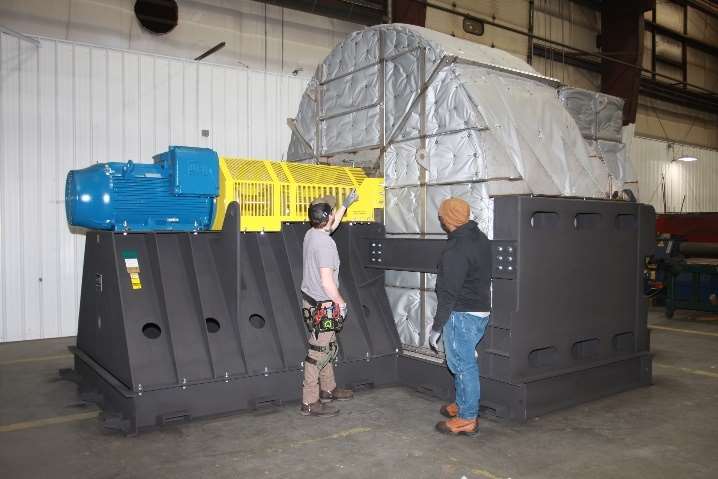

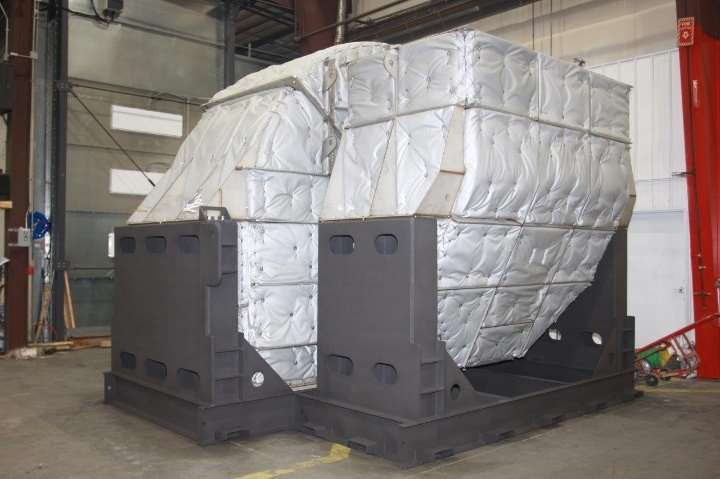

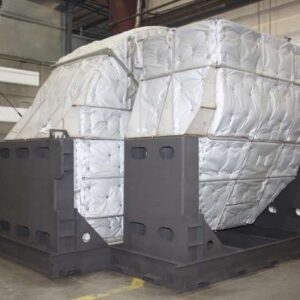

Fan 1 – (QTY 2) BIHS 710, Class 4, 360º discharge, CW Rotation, Arrangement 8, 1200 ºF max design temperature,
1020 RPM max design speed
Application
Industrial furnace air recirculation
Performance
Fan 1 – (QTY 2) 159,000 Acfm @ 4.5” WGSP @ .0308 Lb/ft^3 inlet air density
Features
Fan 1 – 200 HP motor, 304 Stainless Steel Airstream, High Temp Stainless Steel Wheel, Flex Coupling, Purgeable
Mechanical Shaft Seal, 100ºF/minute max design temp rise rate, Integral Inlet Box, High Temp Design, 4” thermal
insulation, spring vibration isolators, Cavity Pillow Outlet Flex Connector, VFD
