Description

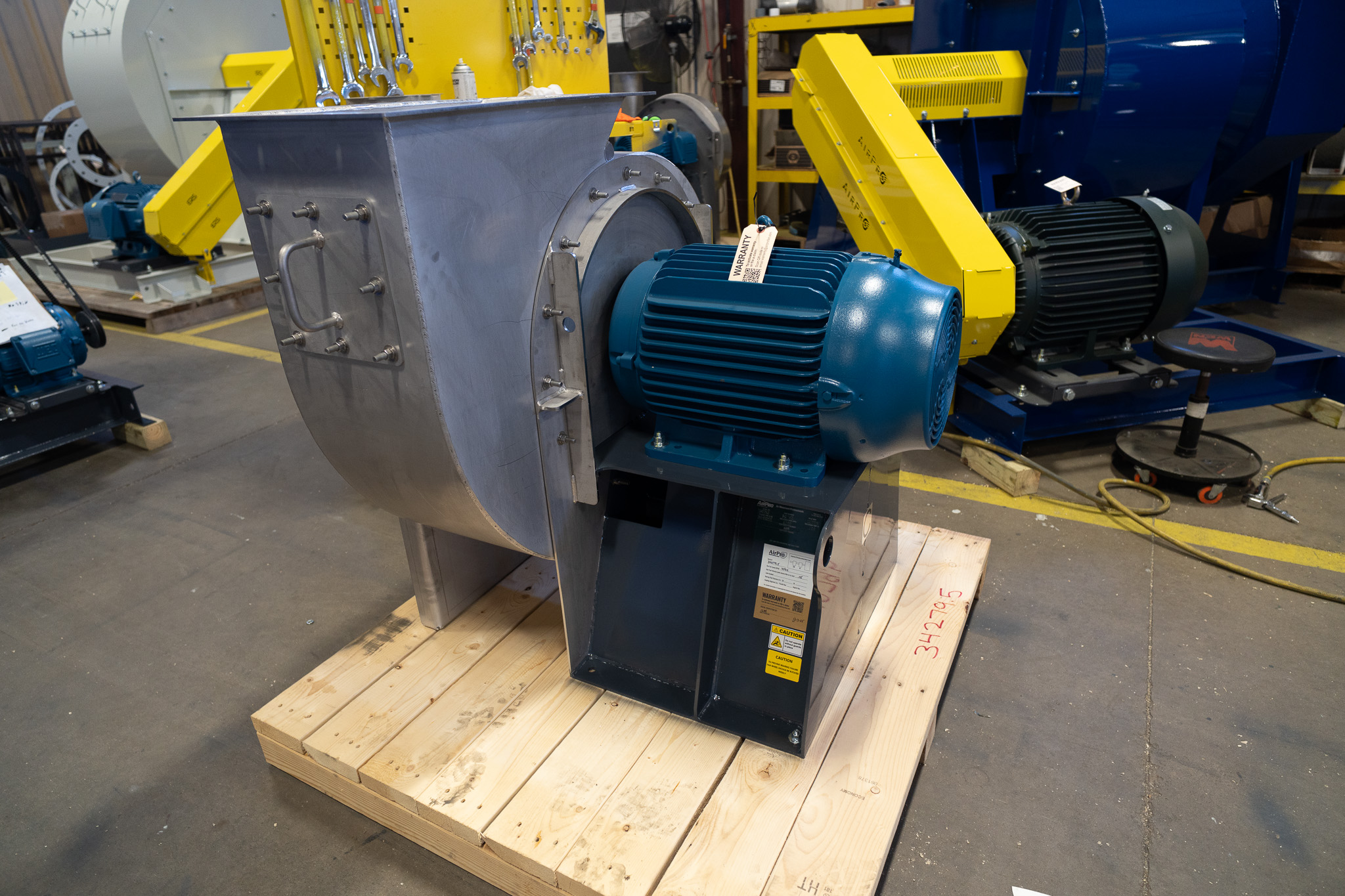

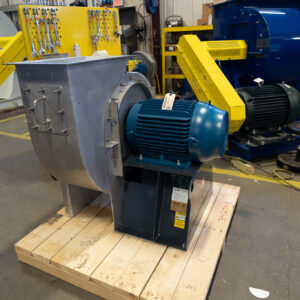

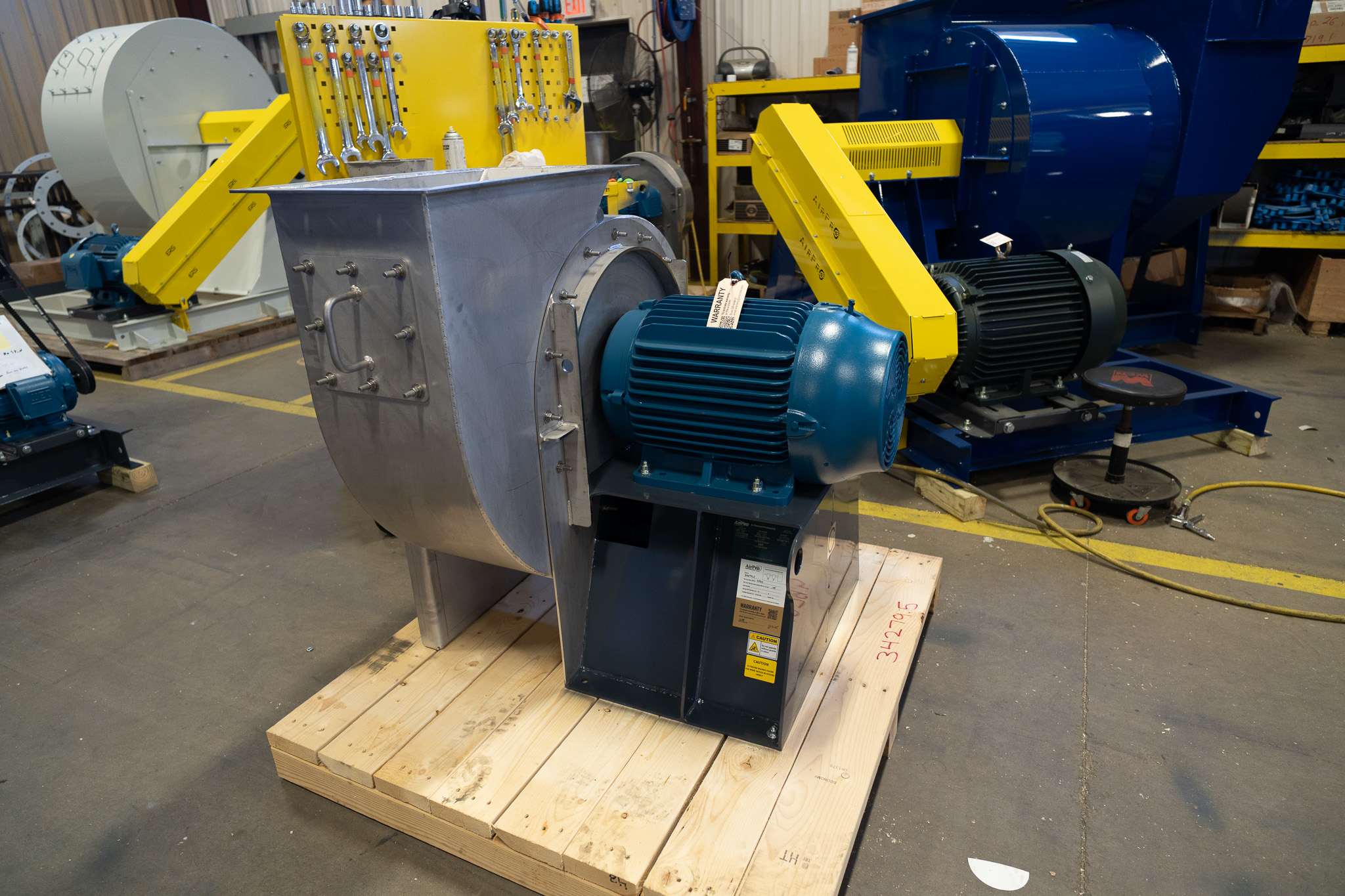

30 HP Motor with Internal Shaft Grounding – High-speed TEFC motor (3600 RPM, 460V/60Hz/3-phase) with internal grounding prevents bearing damage from static discharge
Arrangement 4 – Overhung wheel configuration for easy maintenance access
316 Stainless Steel Airstream with Duplex Wheel – Superior corrosion resistance for demanding applications up to 200°F
Passivation of Interior and Exterior Welds – Enhanced corrosion protection through chemical treatment of all welded surfaces
High-Speed Design – Operates at 3,472 RPM for compact, high-pressure performance
Temperature Change Rate – Rated for 15°F/min thermal cycling for applications with varying temperatures
Bolted Access Door and Drain – Simplified inspection and maintenance access
Flanged and Drilled Connections – Inlet and outlet flanges simplify ductwork installation
Six Identical Fans – This specification represents six identical BIHS 200 fans for this application
This fan delivers dependable performance in industrial applications requiring stainless steel construction and elevated temperature capability.
