Description

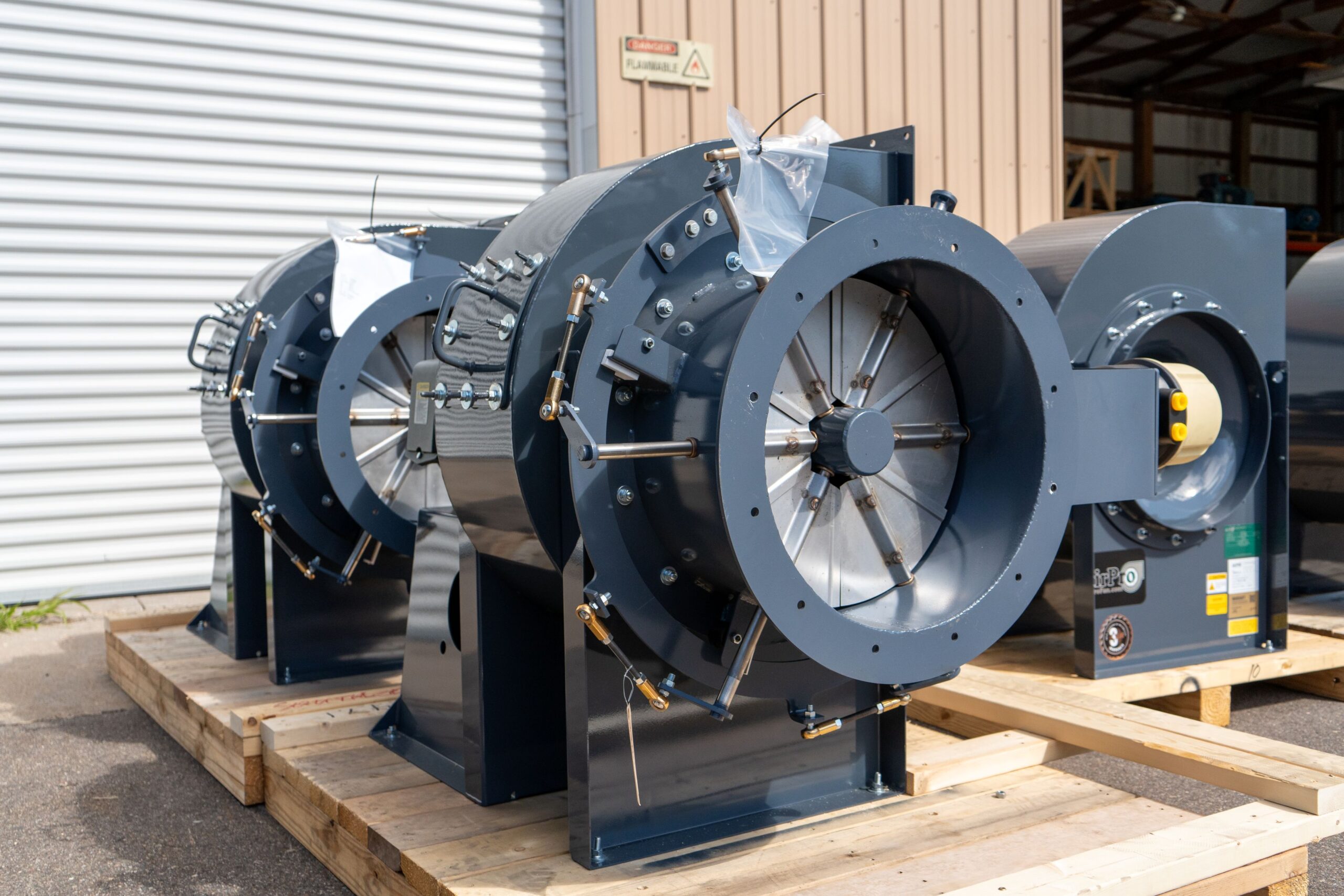

Smart airflow control doesn’t require massive fans. Two BIHS 165 fans heading out this week showcase how AirPro’s smaller industrial fans deliver big performance with intelligent control features. The compact 16.5″ diameter designs feature premium efficiency 15 HP motors that fit tight installation spaces while delivering 5,400 ACFM at 11.0″ w.g. Each unit includes inlet vane dampers with electric actuators for precise flow control and energy savings. These fans are perfect for applications requiring variable airflow in process cooling, combustion air, and industrial ventilation systems where space is at a premium but performance can’t be compromised.

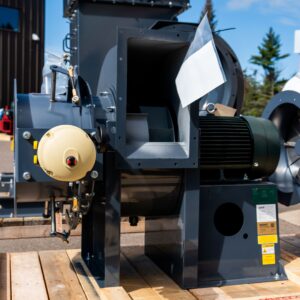

Base Fan: BIHS 165
✔ Airstream Material: Carbon Steel
✔ Wheel Material: Carbon Steel
Motor (Premium Eff, 15hp, 3600rpm, 460V/60Hz/3ph, TEFC,
NEMA 254T)
1/4 inch Pressure Tap on Fan Outlet
Inlet Vane Damper (Carbon Steel) with Electric Actuator & Positioner
✔ Bolted Access Door (unless housing is too narrow)
✔ Drain with Plug (except alloys)
✔ Flanged & Drilled Inlet & Outlet
✔ Industrial Enamel Coating
✔ Ceramic Felt Shaft Seal (except arr 4)
Arrangement: 4
Diameter: 16.5 in
Discharge: 90°
Rotation: CW
Class: 2
Max Design Temp: 150 °F
Max Temp Change Rate: 15 °F/min
