Description

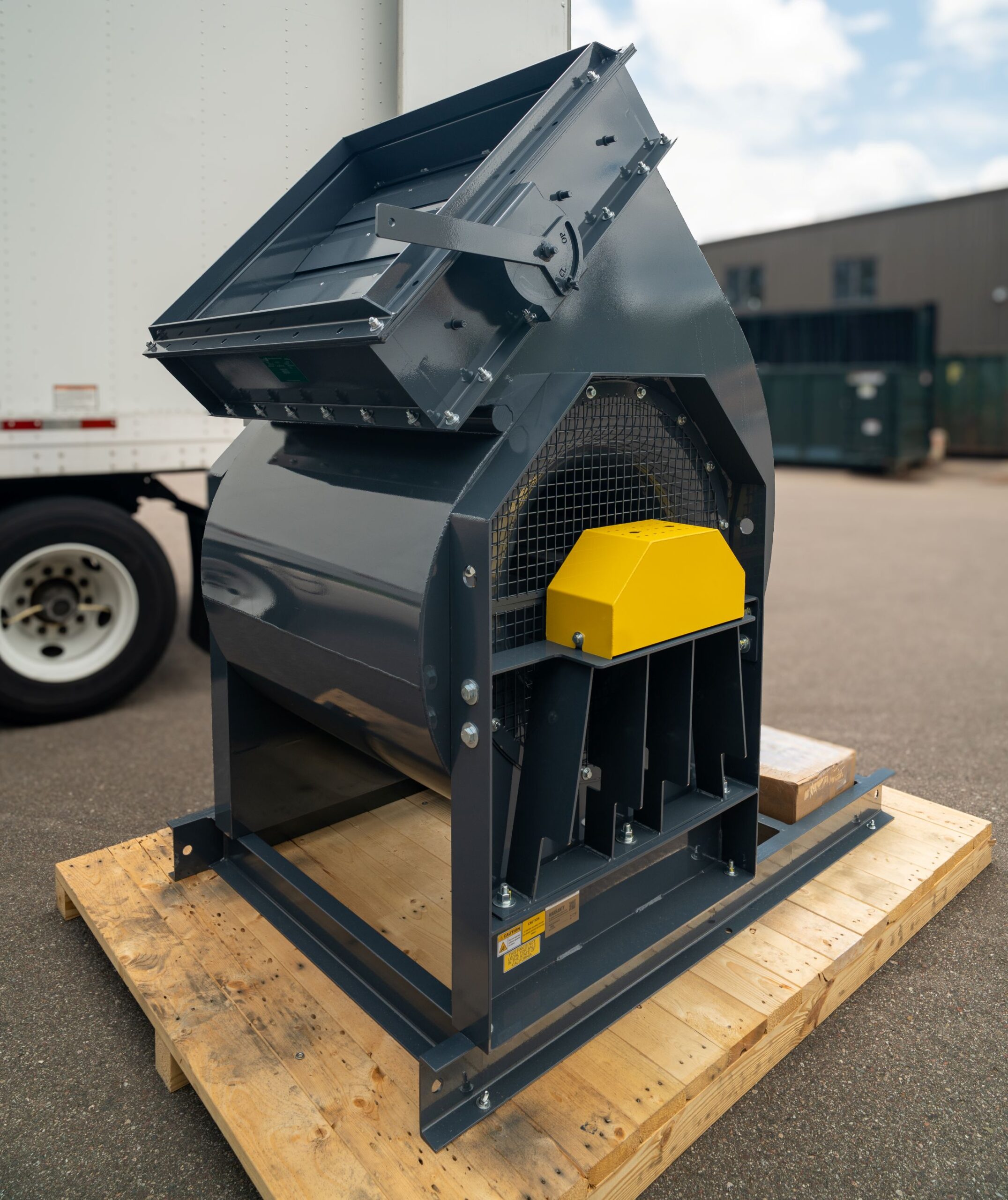

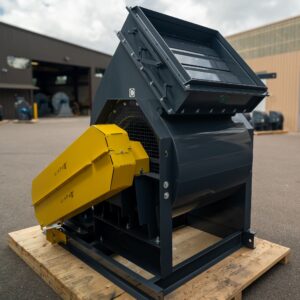

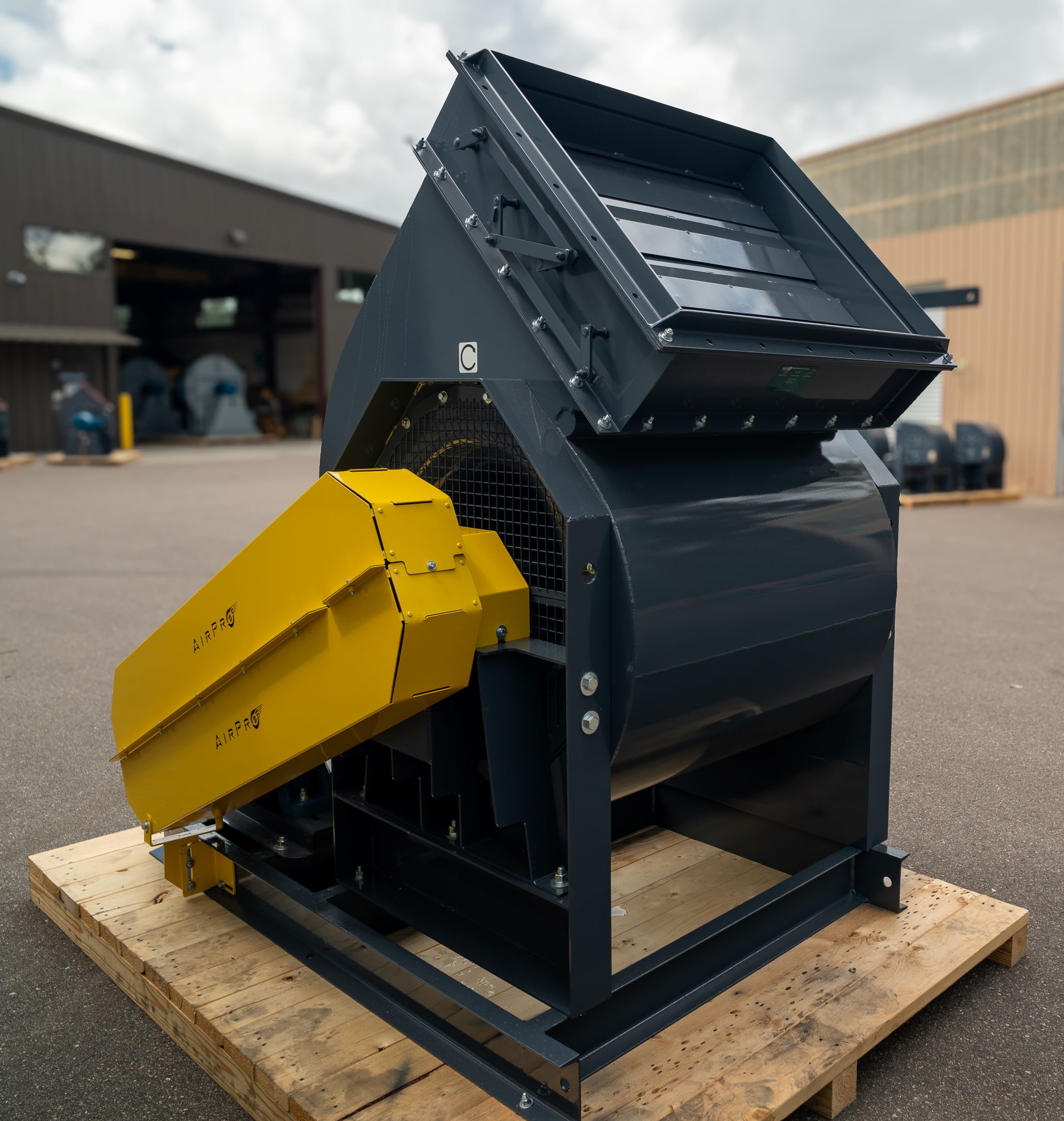

The AirPro BIHD 270 is a reliable, carbon steel industrial fan purpose-built for glass industry applications where precise airflow and dependable operation are essential. With a 27-inch wheel diameter, Arrangement 3 configuration, and 45° CW discharge, this fan provides robust performance in continuous-duty processing environments.

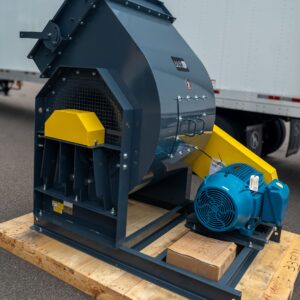

Powered by a premium-efficiency 60 HP, 1800 RPM TEFC motor (NEMA 364T), the BIHD 270 delivers controllable, efficient airflow for demanding operations. Designed for process temperatures up to 150 °F with a 15 °F/min temperature change tolerance, it ensures stable performance and long service life.
Key design features include:
-
Carbon steel airstream and wheel for rugged construction
-
Outlet damper (opposed blade) for precise airflow control
-
Outlet flex connector and flanged discharge with corner holes for system integration
-
Unitary base and OSHA-compliant carbon steel guards for stability and safety
-
Bolted access door and threaded drain with plug for easy maintenance
-
Welded wire inlet guard(s) for added protection
-
Motor position: W (optimized for layout requirements)
-
Estimated ship weight: 1,000 lb (base fan only)
The AirPro BIHD 270 delivers dependable performance for the glass industry, combining durability, precise control, and safe operation to handle the unique demands of high-volume glass production processes.
Fan Data
Arrangement: 3
Diameter: 27 in
Discharge: 45°
Rotation: CW
Class: 3
Max Design Temp: 150 °F
Max Temp Change Rate: 15 °F/min
Est. Ship Weight (per fan): 1,000 lb (base fan only)
Included Description
✔ Base Fan: BIHD 270
✔ Airstream Material: Carbon Steel
✔ Wheel Material: Carbon Steel
✔ Motor (Premium Eff, 60hp, 1800rpm, 460V/60Hz/3ph, TEFC,
NEMA 364T)
✔ V-Belt Drive
✔ OSHA Guards (Carbon Steel)
✔ Unitary Base
✔ Outlet Damper (Opposed Blade, Carbon Steel)
✔ Outlet Flex Connector 1
✔ Flanged Discharge (Maximum 6″ Hole Spacing, W/Corner
Holes)
✔ Bolted Access Door
✔ Threaded Drain W/Plug
✔ Welded Wire Inlet Guard(s)
✔ Motor position W
