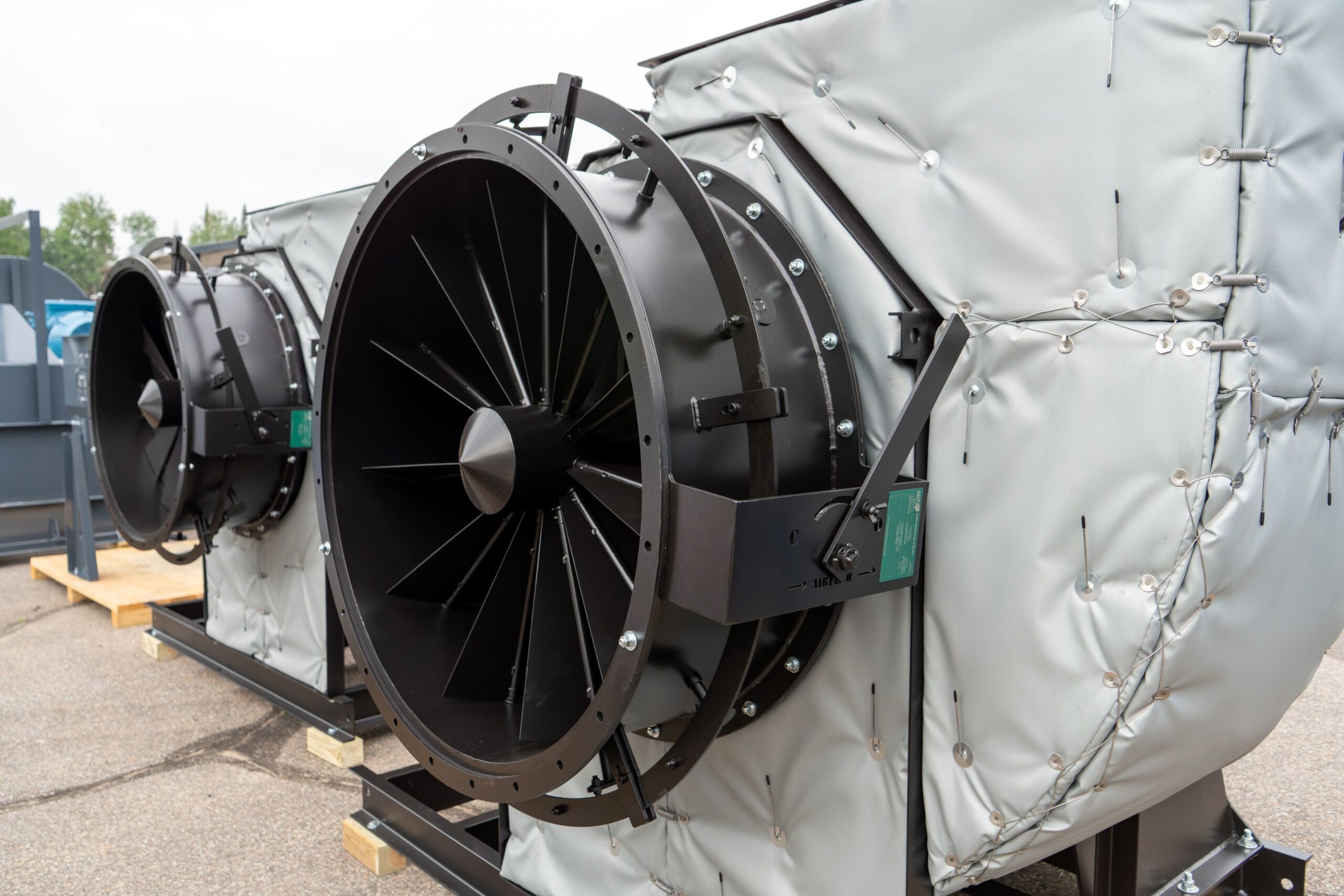

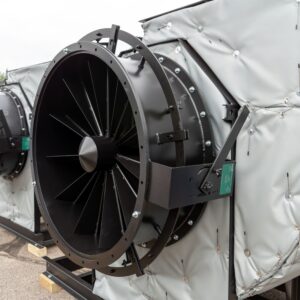

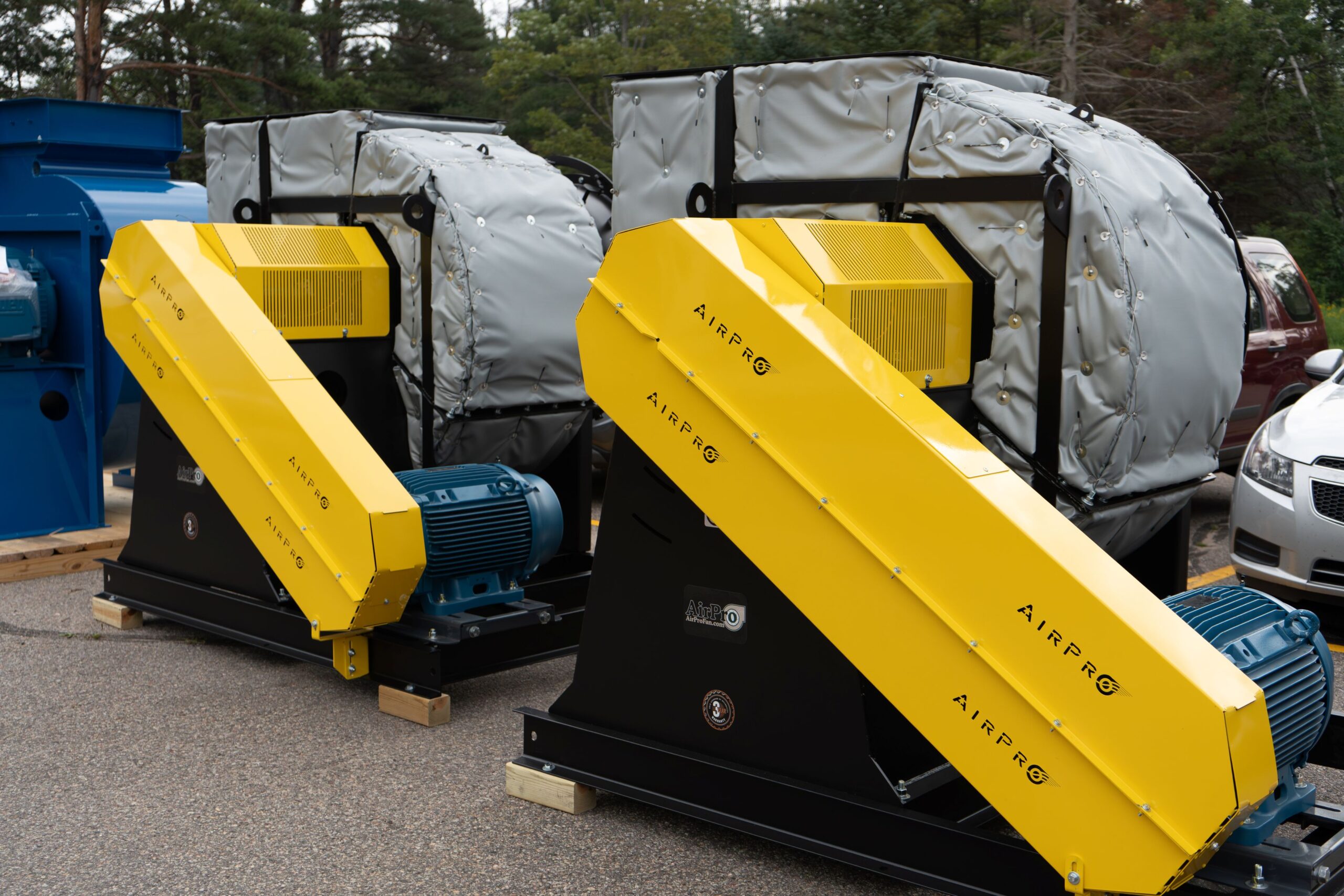

AirPro BCES 365 High-Temperature Industrial Fan
This AirPro BCES 365 is a robust, high-efficiency industrial fan engineered for continuous-duty service in extreme heat applications, including the glass industry. Built with a carbon steel airstream and high-strength carbon steel wheel, it features a rugged design for consistent airflow in demanding environments up to 550 °F with a safe thermal change rate of 15 °F/min.
Featuring a 36.5-inch wheel, Arrangement 1 configuration, and 360° discharge with CW rotation, the BCES 365 runs with a premium-efficiency 75 HP, 1800 RPM TEFC motor (NEMA 365T). A v-belt drive, OSHA-compliant carbon steel safety guards, and a unitary base ensure reliable and safe operation.
Key design features include:
-
BCES base fan with pie-split housing for easier service
-
Inlet vane damper, inlet/outlet flex connectors, and rubber vibration isolators for system integration and stability
-
Thermal jacket insulation (2″) to maintain performance at high temperatures
-
300,000-hour bearings for extended life and reduced maintenance downtime
-
Bolted access door, drain with plug, and ceramic felt shaft seal for serviceability
-
Industrial enamel coating for corrosion resistance and durability
-
Flanged & drilled inlet/outlet connections for easy installation
-
Estimated ship weight: 2,300 lb (base fan only)
The AirPro BCES 365 delivers dependable, high-temperature airflow in rugged industrial environments, making it an excellent solution for applications in the glass industry and beyond.
Included Description
✔ Base Fan: BCES 365
✔ Airstream Material: Carbon Steel
✔ Wheel Material: High Strength Carbon Steel
✔ High Temperature Design
✔ Motor (Premium Eff, 75hp, 1800rpm, 460V/60Hz/3ph, TEFC,
NEMA 365T)
✔ V-Belt Drive
✔ OSHA Guards (Carbon Steel)
✔ Unitary Base
✔ Inlet Vane Damper (Carbon Steel)
✔ Inlet Flex Connector 1
✔ Outlet Flex Connector 2
✔ Vibration Isolators (Rubber Vibration Isolator) 3
✔ Split Housing (Pie)
✔ Insulation (Thermal Jacket 2″)
✔ 300,000 Hour Bearings
✔ Bolted Access Door (unless housing is too narrow)
✔ Drain with Plug (except alloys)
✔ Flanged & Drilled Inlet & Outlet
✔ Industrial Enamel Coating
✔ Ceramic Felt Shaft Seal (except arr 4)
Fan Data
Arrangement: 1
Diameter: 36.5 in
Discharge: 360°
Rotation: CW
Class: 4
Max Design Temp: 550 °F
Max Temp Change Rate: 15 °F/min
Est. Ship Weight (per fan): 2,300 lb (base fan only)
Application: Glass Industry
